DMG80480C043_02WTRZ07 Display

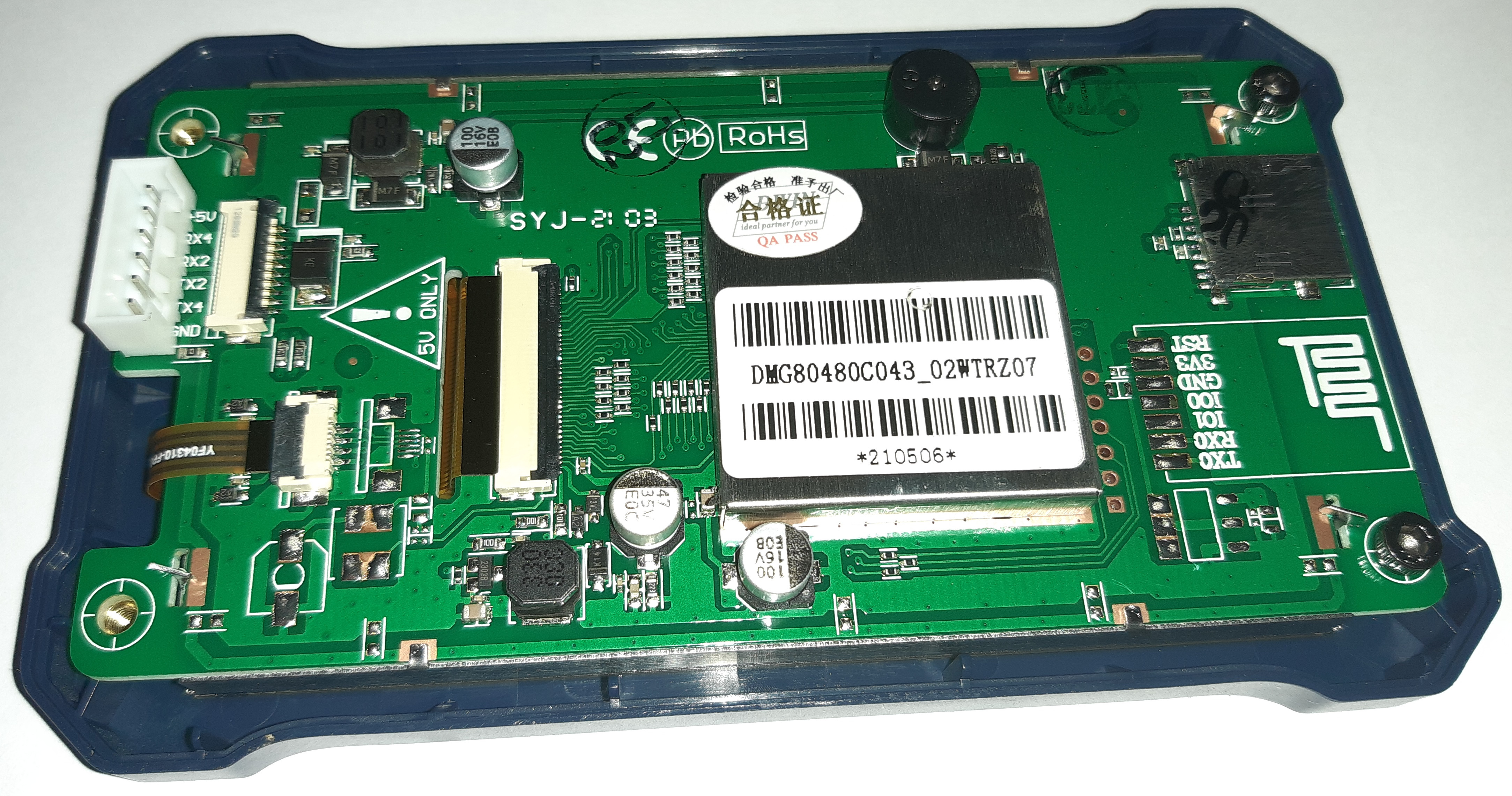

../../_images/Model_B_Display_Disassembled.jpg

Pinout

From right to left, when looking at the backside of the display case.

Pinout Display Connector

Pin

Function

1

+5V

2

RX4 (NC)

3

RX2

4

TX2

5

TX4 (NC)

6

GND
