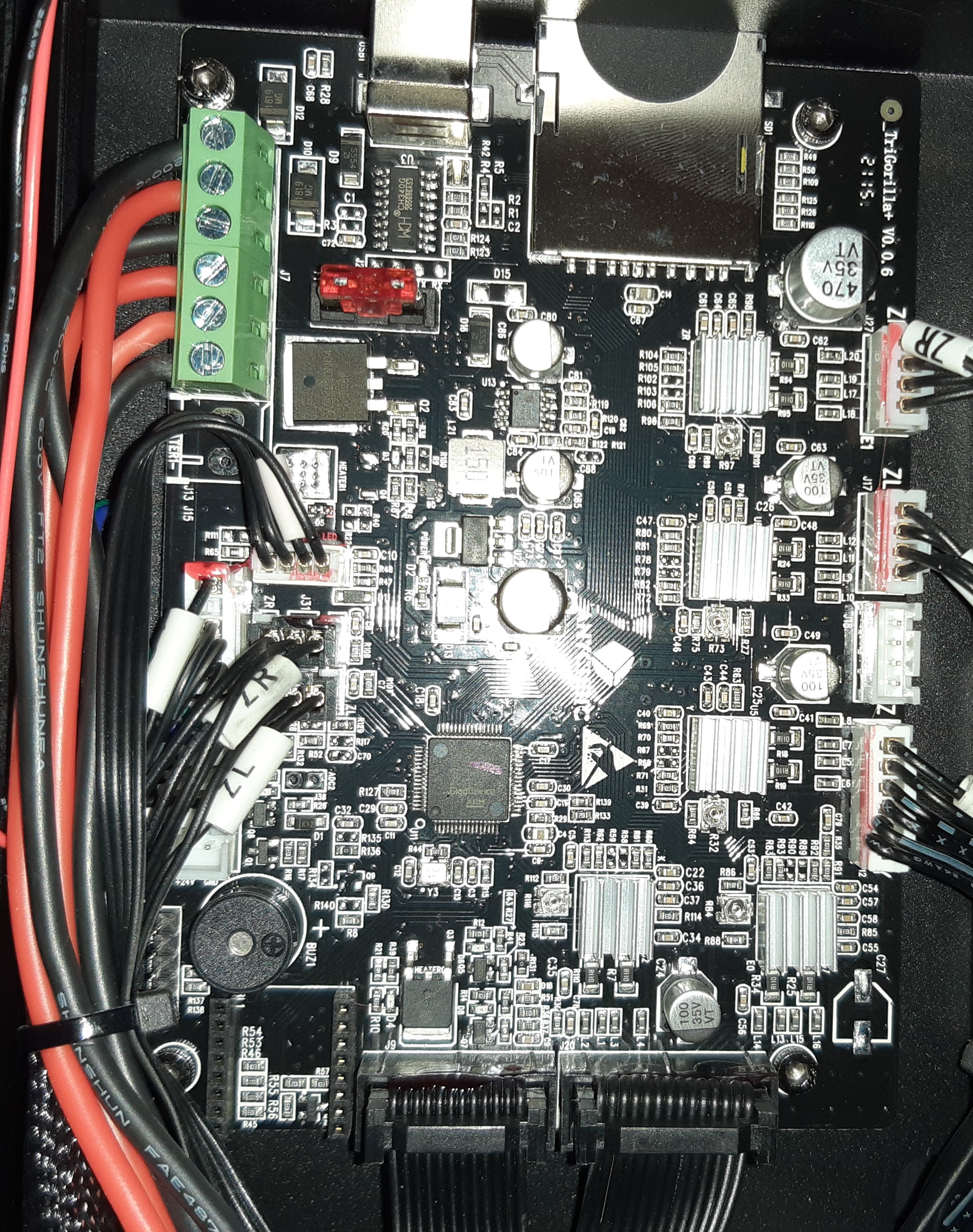

TriGorilla V0.0.6 Mainboard
MCU
The TriGorilla V0.0.6 Mainboard uses a GD32F103 MCU.
PINS —
This PIN definitions were taken from Anycubic Firmware source.
See https://github.com/ANYCUBIC-3D/Vyper/blob/vyper/Marlin/src/pins/stm32f1/pins_AC_TRI_F1_V1.h
Used Pins:
PIN |
Usage |
|---|---|
End Stops |
|
PA7 |
X Axle Min |
PC6 |
X Axle Max |
PC5 |
Y Axle Min |
PB2 |
Z Axle Min |
Stepper X |
|
PC3 |
Stepper X Enable |
PC2 |
Stepper X Step |
PB9 |
Stepper X Direction |
Stepper Y |
|
PC13 |
Stepper Y Enable |
PB8 |
Stepper Y Step |
PB7 |
Stepper Y Direction |
Stepper Z |
|
PC14 |
Stepper Z Enable |
PB6 |
Stepper Z Step |
PB5 |
Stepper Z Direction |
Stepper E0 |
|
PA15 |
Stepper E0 Enable |
PB4 |
Stepper E0 Step |
PB3 |
Stepper E0 Direction |
Stepper E1 |
|
PC15 |
Stepper E1 Enable |
PC0 |
Stepper E1 Step |
PC1 |
Stepper E1 Direction |
Temperature Sensors |
|
PC4 |
Temperatur Sensor 0 |
PB0 |
Temperatur Sensor Bed |
Heater |
|
PA1 |
Heater 0 |
PA8 |
Heater 1 |
PA4 |
Heater Bed |
Fans |
|
PA0 |
FAN 0 |
PA14 |
FAN1 |
Misc. |
|
PB15 |
Beeper |
PA6 |
Power Loss |
PA6 |
Power Monitor |
PA5 |
Filament Runout |
PA13 |
Case Light (LED Printing Head???) |
Autolevel |
|
PB13 |
Autolevel TX Pin |
PB12 |
Autolevel RX Pin |
SD-Card |
|
PC7 |
SD Card Detect |
PC8 |
SDIO D0 |
PC9 |
SDIO D1 |
PC10 |
SDIO D2 |
PC11 |
SDIO D3 |
PC12 |
SDIO CLK |
PD2 |
SDIO CMD |
Serial Interfaces
No |
Usage |
|---|---|
1 |
??? |
2 |
??? |
3 |
Display Communication |
